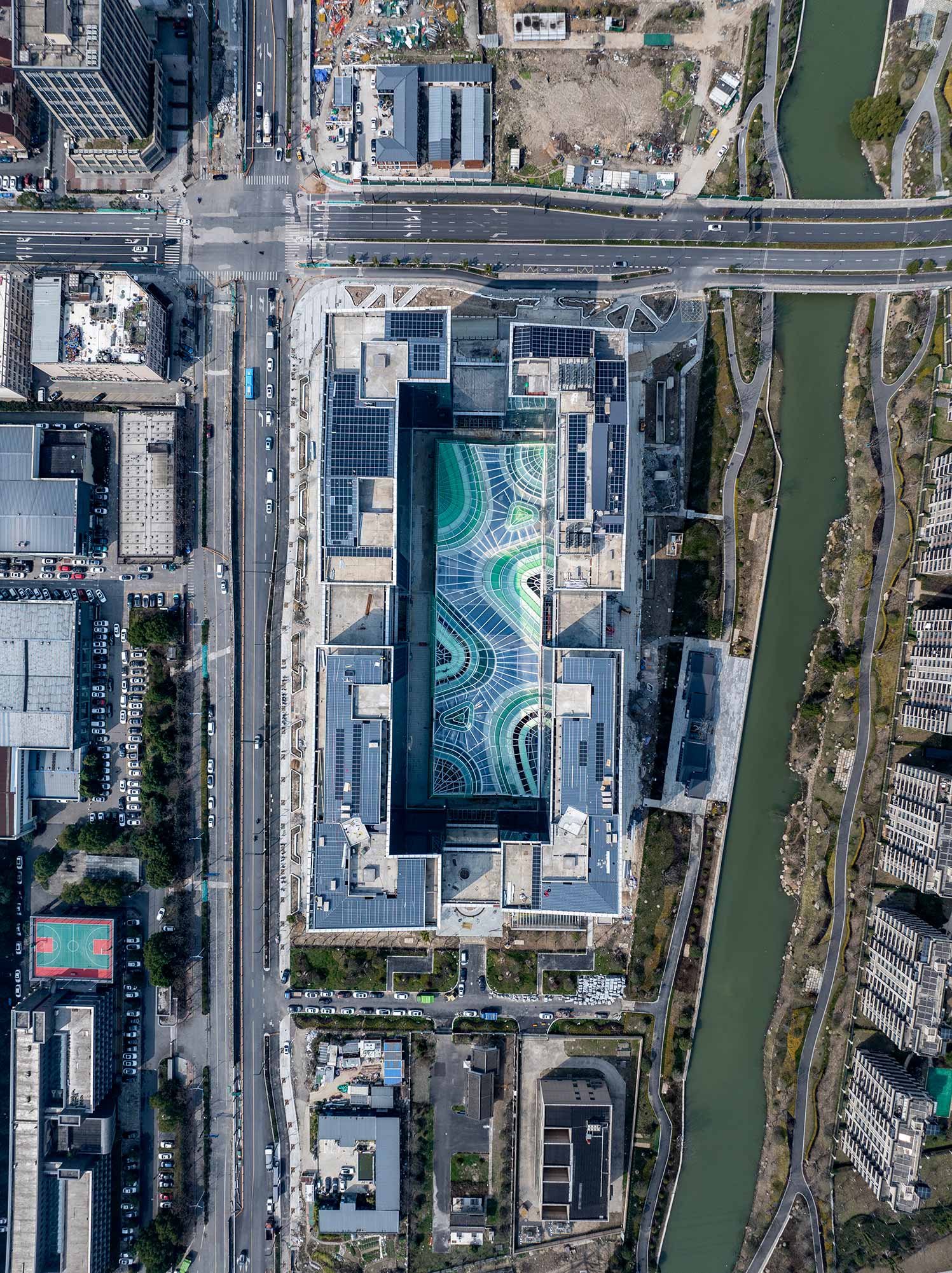

博多森谷产业园位于杭州市余杭区,是一处已建成的高层产业园区。现状建筑为四幢10-13层高层办公楼,围绕3000平米的露天中心庭院布置,并由3层“回”字形连廊相连。本次改造的灵感源自杭州的山水茶田,秉承“森谷(forest vally)”的设计理念,力求在繁忙的都市中营造一个自然、绿色、健康、美好的生活场景。通过景观与建筑的改造,该设计不仅与业主的品牌理念高度契合,更在传承地域文化的同时,赋予了产业园新的活力与生命力。设计在庭院上方设置了四层高的半开放天幕,犹如茶山延绵起伏,形成错落有致的阶梯形式,不仅为园区带来了独特的视觉效果,更打破了原有呆板的中庭空间,增添了空间的层次感和活力。此外,通过环绕庭院的回字形连廊上增设的景观露台,以及四个主要出入口的高低错落景观台地设计,为园区使用者提供了更多休憩、交流、互动的空间,赋予了人们生活社交等多元空间向外延伸的深层含义。

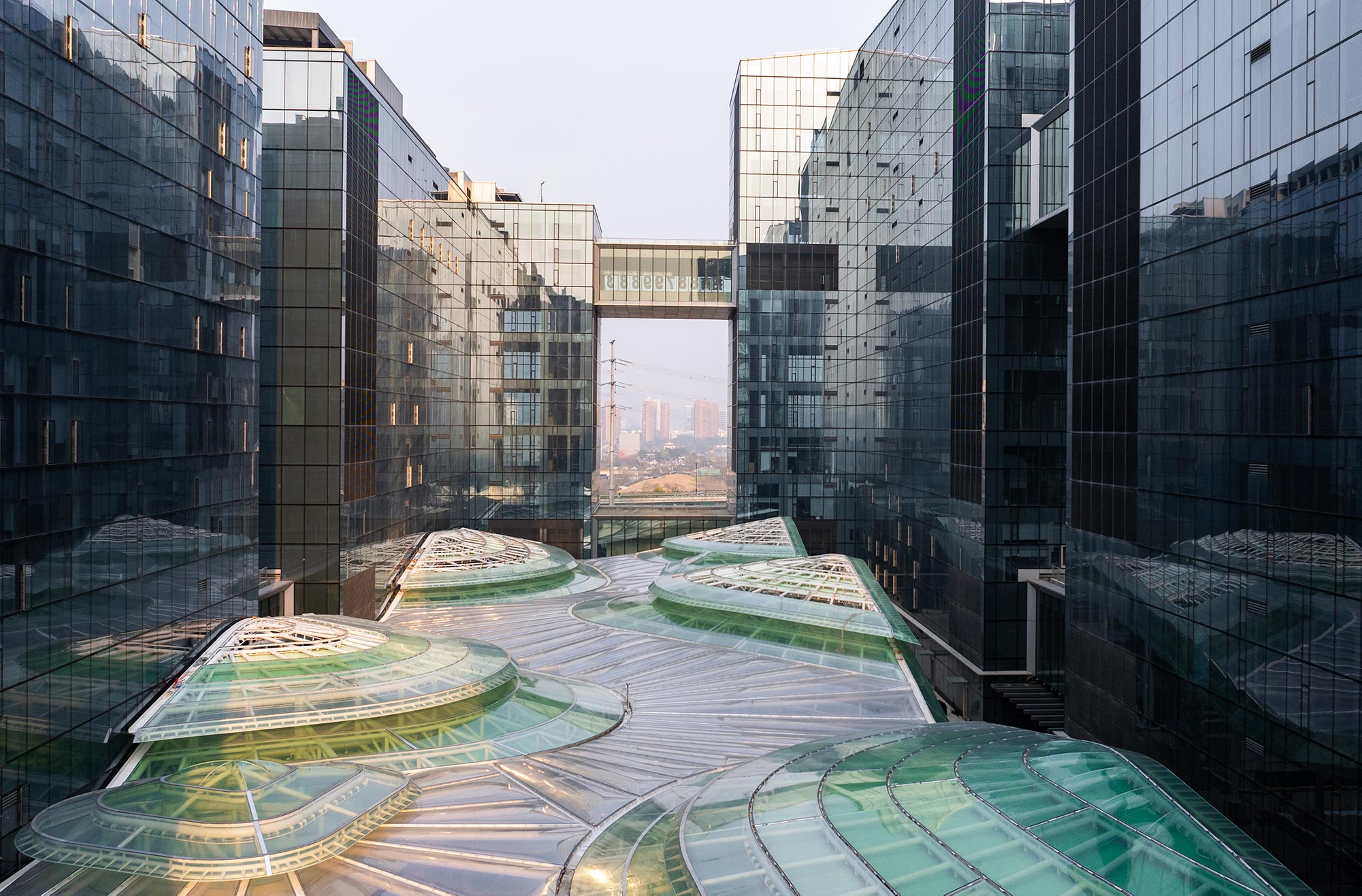

中庭天幕的造型设计复杂而精细,钢结构跨度大,截面形式多样,整体呈曲面布置。在材料选择上,采用了ETFE单层膜和双层气枕膜以及网格织物膜,这些材料不仅具有良好的透光性和耐久性,还能有效抵御极端天气的影响,保证了庭院内使用的舒适度。天幕采用三种同色系的的膜材层层叠加、层层错落、层层包覆,形成了独特的视觉效果。通过景观天幕和步行系统的优化,该项目成功地将园区与城市界面相衔接,使产业园成为了一个凝聚活力、开放互动的城市社交平台。
The Boduo Sengu Business Center comprises four office buildings positioned around a 3000 sqm open-air central atrium with circular corridors. The recent renovation was designed to create a healthy and dynamic workplace embracing a "forest valley" concept that celebrates the regional landscape. A striking feature is the fourth-floor canopy, which draws inspiration from Hangzhou's terraced tea mountains and adds depth and vibrancy to the space. Additionally, landscape terraces in the corridors have been incorporated to provide inviting leisure and social areas, transforming the space into a lively and engaging hub.
The atrium canopy is characterized by its sophisticated form, featuring large-span steel structures with diverse cross-sectional profiles arranged in a curved configuration. It utilizes three types of membranes: single-layer ETFE foil, double-layer ETFE foil cushions, and mesh fabric. These materials provide excellent light transmission, durability, and weather resilience, ensuring optimal comfort and energy efficiency in the semi-indoor space. The membranes are layered, staggered, and enveloped, enhancing the canopy's visual appeal from both high-rise viewpoints and ground-level perspectives.
业主 Client
浙江博多控股集团有限公司 Zhejiang Boduo Holding Group
所在地址 Location
浙江省杭州市 Hangzhou, Zhejiang
建筑规模 GFA
8,500㎡(改造部分) 8,500㎡(改造部分)
项目类型 Type
办公&产业 For Working
设计范围 Design scope
建筑 Architectural
设计周期 Design period
2023 - 2024
